E36

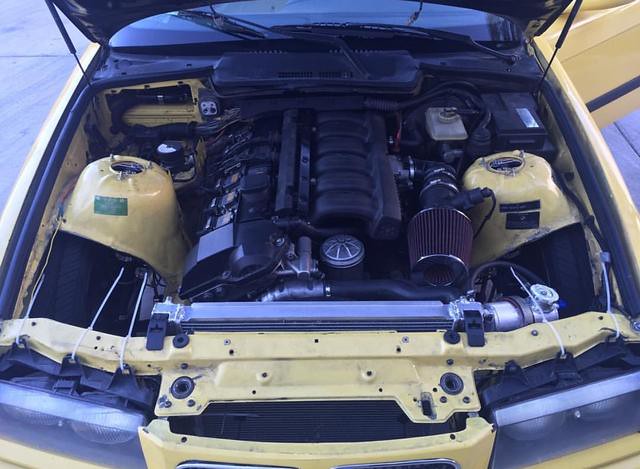

BMW E36 Chassis

1990–2000

The BMW E36 is one of the most popular drift platforms in the world. Its near-perfect 50/50 weight distribution, independent rear suspension, and wide aftermarket support make it an ideal candidate for both entry-level and professional drift builds. Commonly paired with S54, N54, or LS swaps.

BMW 3 Series E36 (318i, 323i, 325i, 328i, M3)

Display Units:

Basic — first 5 specs per section

Always verify torque specifications with your specific year/model OEM service manual before assembly. Values shown are reference specifications and may vary by model year, revision, or regional market.

Drivetrain Suspension Brakes

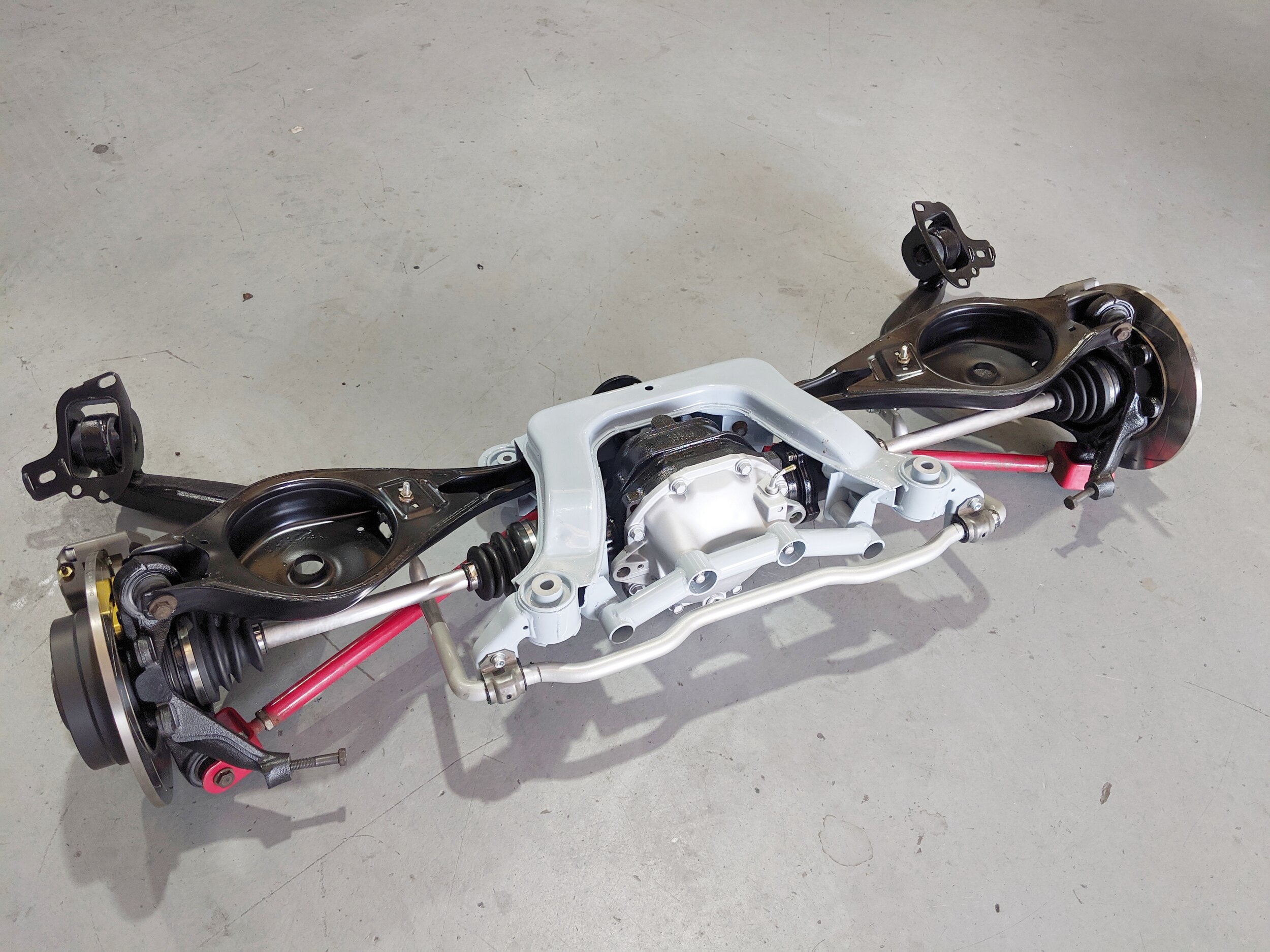

1Drivetrain

14 specifications · 9 locked

Component	Value	Unit	Notes
Motor Mount Bushings (OEM Rubber)	30	lb-ft
Motor Mount Bushings (Polyurethane)	12–15	lb-ft
Transmission Mount (OEM)	16	lb-ft
Transmission Brace	31	lb-ft
Flex Disc (Guibo) M10 8.8	35	lb-ft	Single-use nuts; replace each time
████████████████	██	████	████████████
████████████████	██	████	████████████
████████████████	██	████	████████████

9 more specs locked

Upgrade to Pro to unlock all torque specs

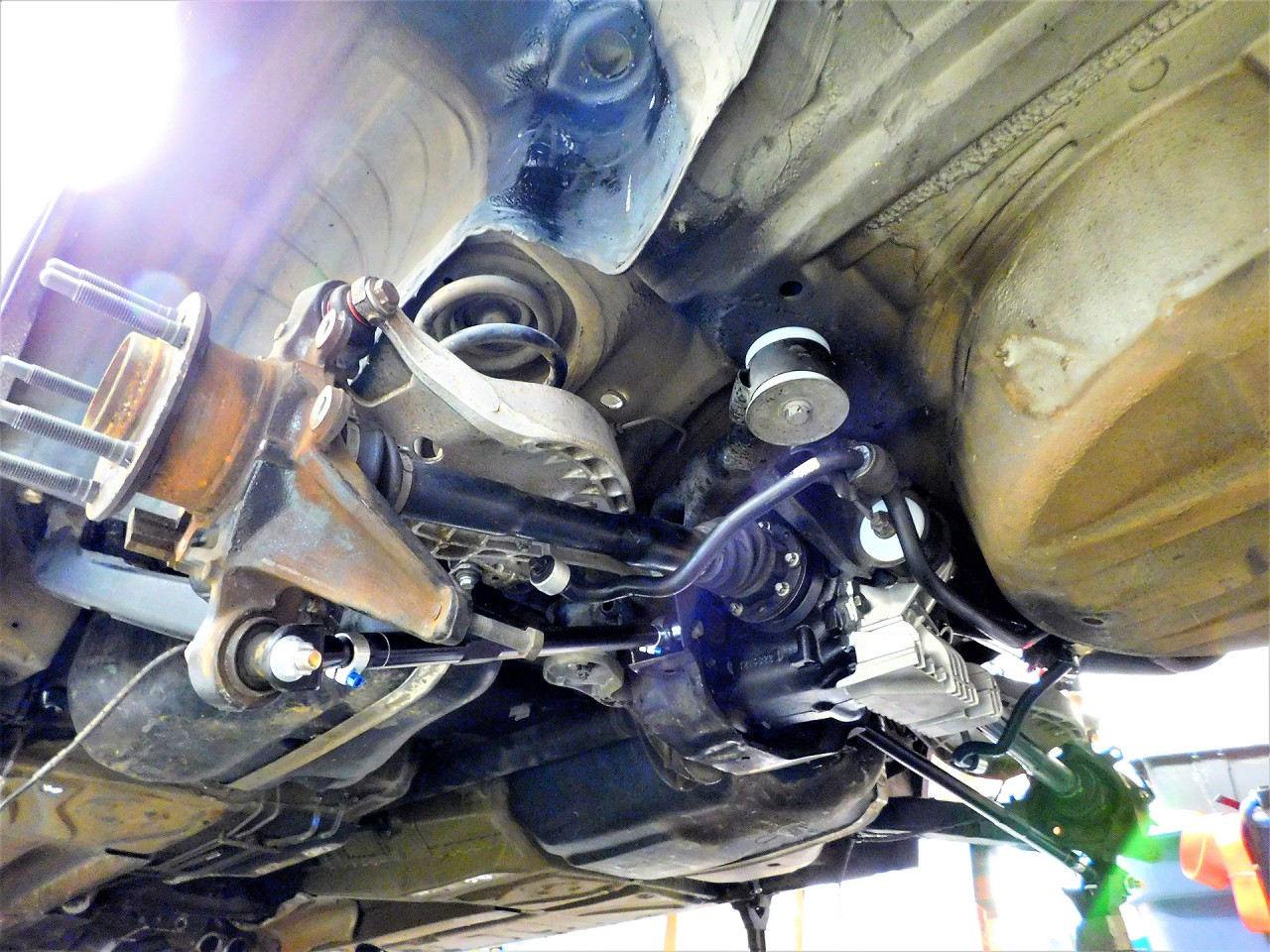

2Suspension

13 specifications · 8 locked

Component	Value	Unit	Notes
Front Control Arms	31–35	lb-ft
Front Sway Bar Links M8	17	lb-ft
Front Sway Bar Links M10	31	lb-ft
Rear Upper Control Arm to Diff Carrier	57	lb-ft
Rear Upper Control Arm to Trailing Arm	81	lb-ft
████████████████	██	████	████████████
████████████████	██	████	████████████
████████████████	██	████	████████████

8 more specs locked

Upgrade to Pro to unlock all torque specs

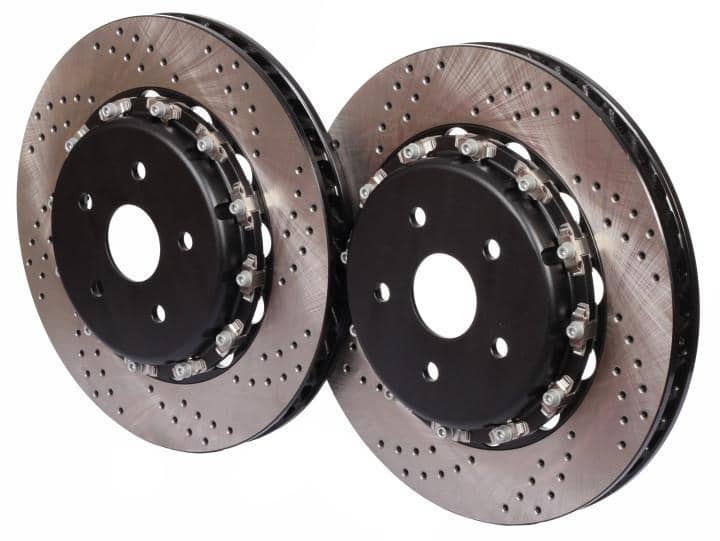

3Brakes

4 specifications

Component	Value	Unit
Wheel Studs to Hub	27–32	lb-ft
Brake Caliper to Steering Arm	81	lb-ft
Brake Rotor to Drive Flange	12	lb-ft
Lug Nuts	87	lb-ft
