S13/S14

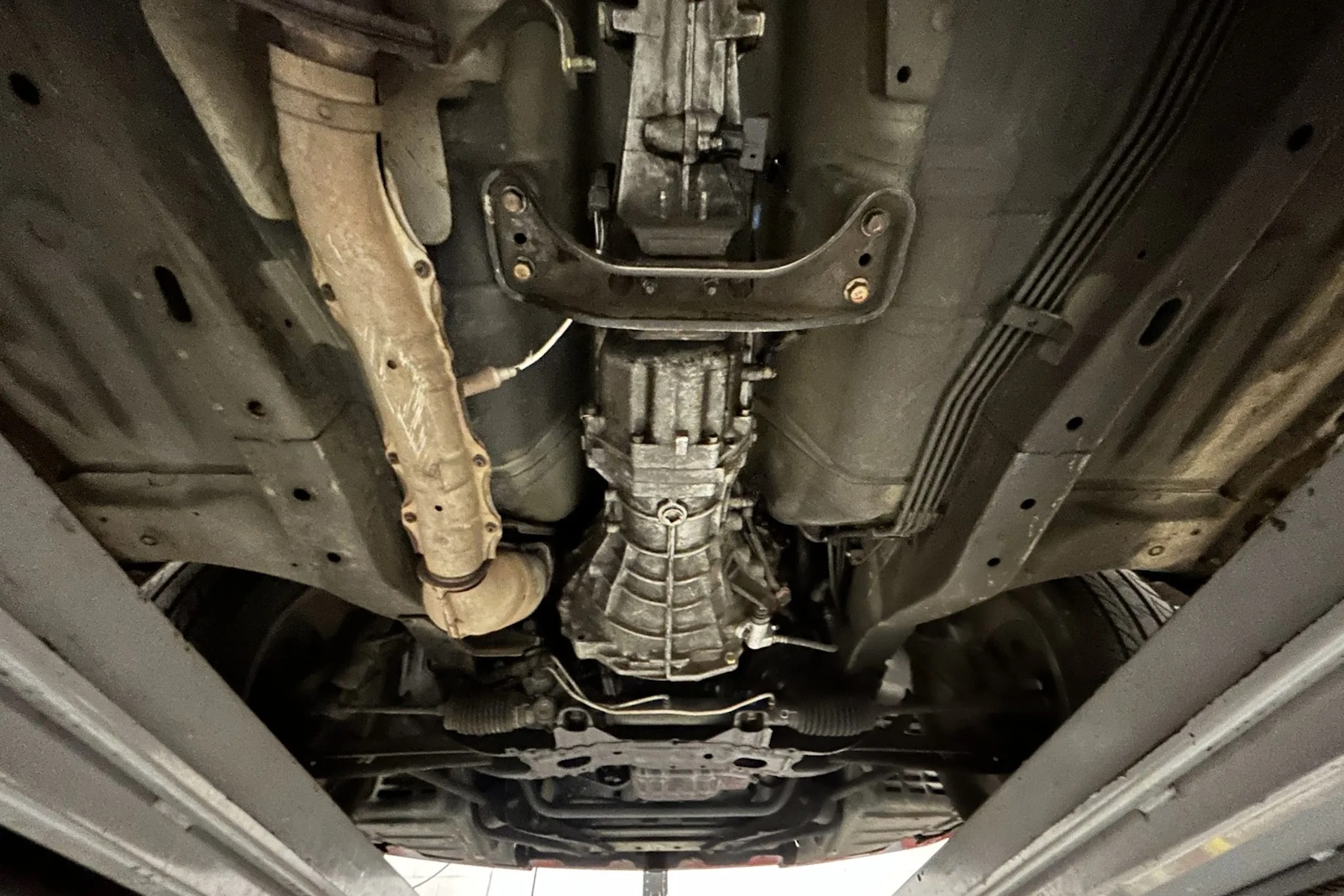

Nissan 240sx S13/S14 Chassis

1989–1998

The Nissan S-chassis (S13 and S14) is the quintessential drift car platform. Lightweight, rear-wheel drive, and featuring a well-sorted independent rear suspension, the S-chassis has been the backbone of grassroots and professional drifting worldwide. The S13 hatchback and S14 coupe are both highly sought after.

Nissan 240sx S13 (1989–1994)Nissan 240sx S14 (1995–1998)Nissan Silvia S13/S14

Display Units:

Basic — first 5 specs per section

Always verify torque specifications with your specific year/model OEM service manual before assembly. Values shown are reference specifications and may vary by model year, revision, or regional market.

Suspension Drivetrain Brakes Steering

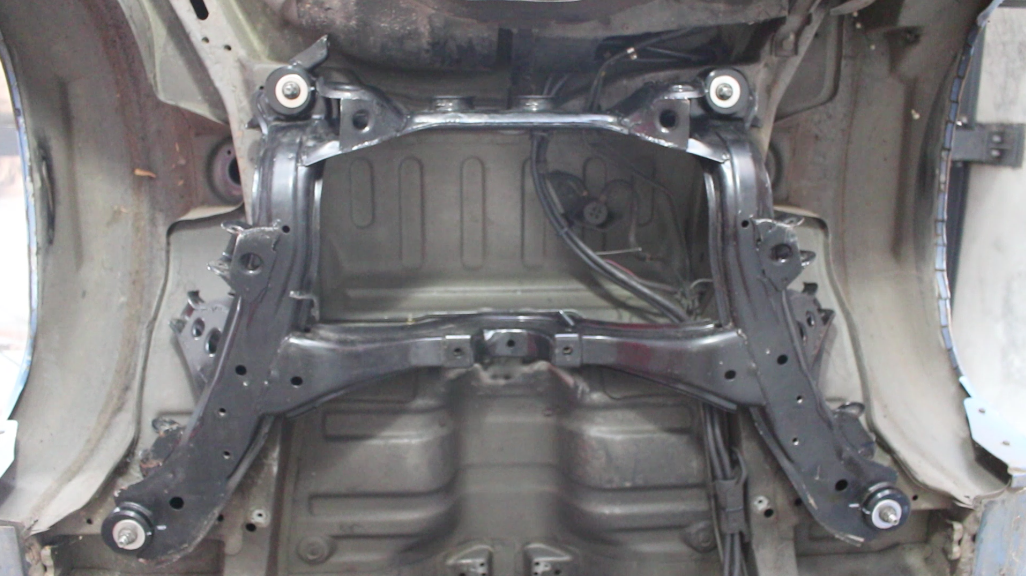

1Suspension

11 specifications · 6 locked

Component	Value	Unit	Notes
Front Lower Control Arm Bolts	72–87	lb-ft
Front Upper Control Arm Bolts	36–43	lb-ft
Front Strut to Knuckle	72–87	lb-ft
Front Strut Top Mount Nuts	27–38	lb-ft
Front Sway Bar Bracket	22–29	lb-ft
████████████████	██	████	████████████
████████████████	██	████	████████████
████████████████	██	████	████████████

6 more specs locked

Upgrade to Pro to unlock all torque specs

2Drivetrain

5 specifications

Component	Value	Unit	Notes
Motor Mount Bolts	29–40	lb-ft
Transmission Mount Bolts	29–40	lb-ft
Propeller Shaft to Diff Flange	29–36	lb-ft
Differential Mounting Bolts	43–58	lb-ft
Rear Axle Nut	152–203	lb-ft	Replace cotter pin

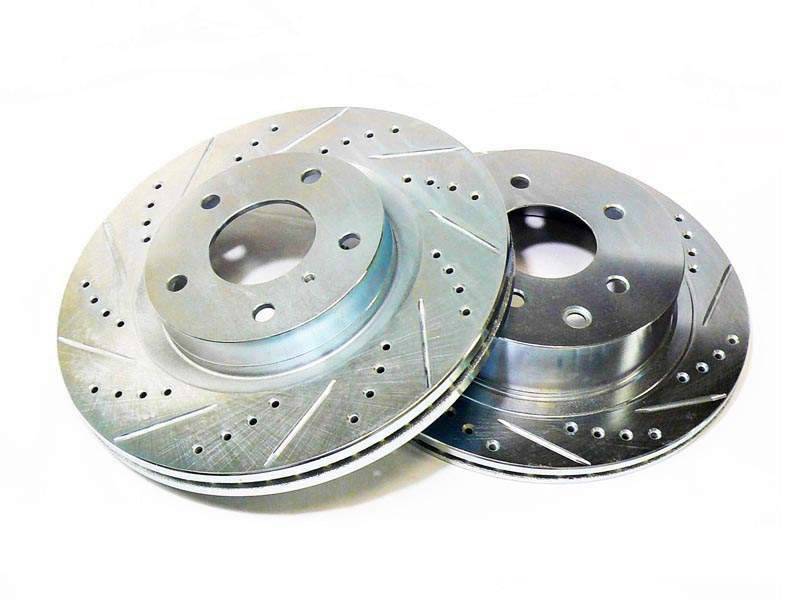

3Brakes

3 specifications

Component	Value	Unit
Front Brake Caliper Bolts	53–72	lb-ft
Rear Brake Caliper Bolts	28–38	lb-ft
Lug Nuts	72–87	lb-ft

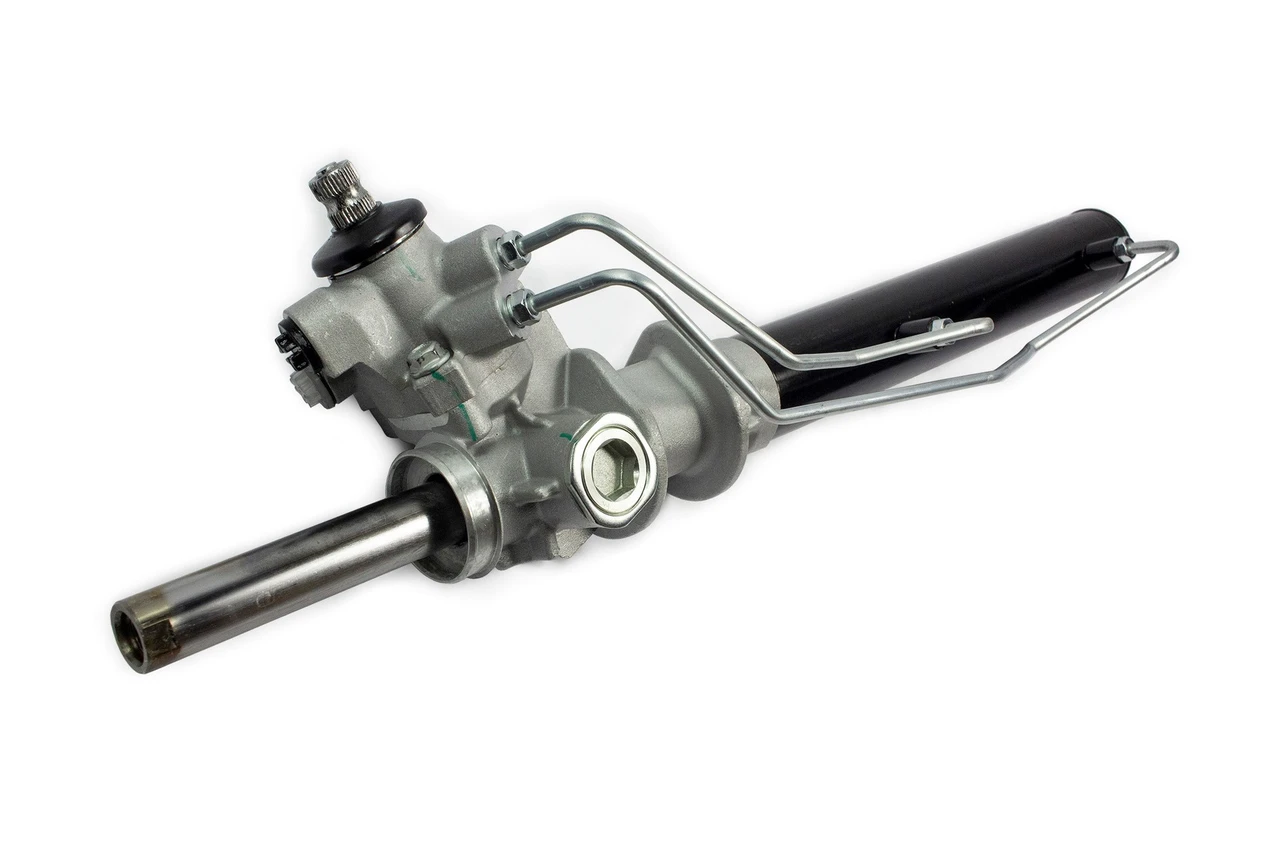

4Steering

3 specifications

Component	Value	Unit
Steering Rack Mounting Bolts	29–40	lb-ft
Tie Rod End to Knuckle	22–29	lb-ft
Steering Wheel Nut	22–29	lb-ft
