350z / G35
Nissan 350z Z33 / Infiniti G35 V35 Chassis
2002–2008
The Nissan 350z and Infiniti G35 share the Z33/V35 platform and are powered by the VQ35DE/HR engine. Their multi-link rear suspension, factory limited-slip differential options, and strong chassis make them increasingly popular drift platforms, especially for those seeking a more modern alternative to the S-chassis.
Nissan 350z Z33 (2002–2008)Infiniti G35 Coupe V35 (2002–2007)Infiniti G35 Sedan V35 (2002–2006)
Always verify torque specifications with your specific year/model OEM service manual before assembly. Values shown are reference specifications and may vary by model year, revision, or regional market.

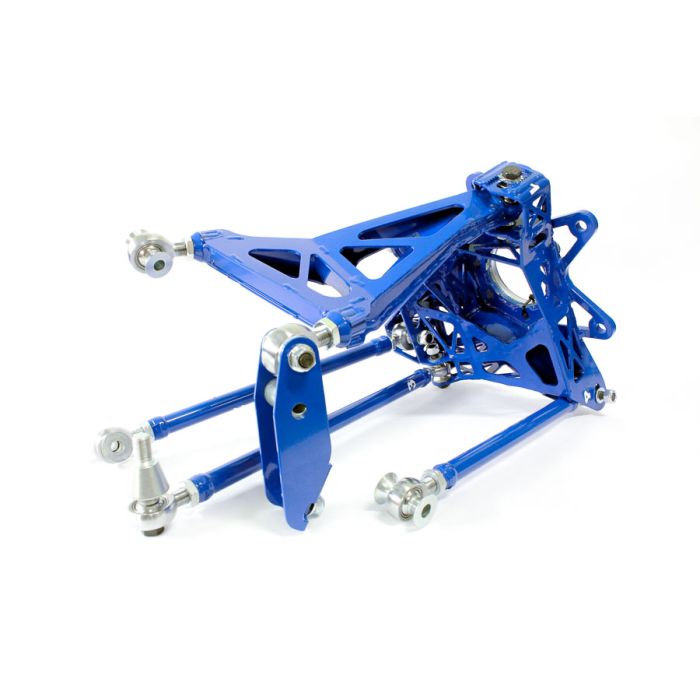

1Suspension
10 specifications · 5 locked
| Component | Value | Unit | Notes |
|---|---|---|---|
| Front Lower Control Arm Bolts | 87–116 | lb-ft | |
| Front Upper Control Arm Bolts | 58–72 | lb-ft | |
| Front Strut to Knuckle Pinch Bolt | 72–87 | lb-ft | |
| Front Strut Top Mount Nuts | 29–40 | lb-ft | |
| Front Sway Bar Bracket | 22–29 | lb-ft | |
| ████████████████ | ██ | ████ | ████████████ |
| ████████████████ | ██ | ████ | ████████████ |
| ████████████████ | ██ | ████ | ████████████ |

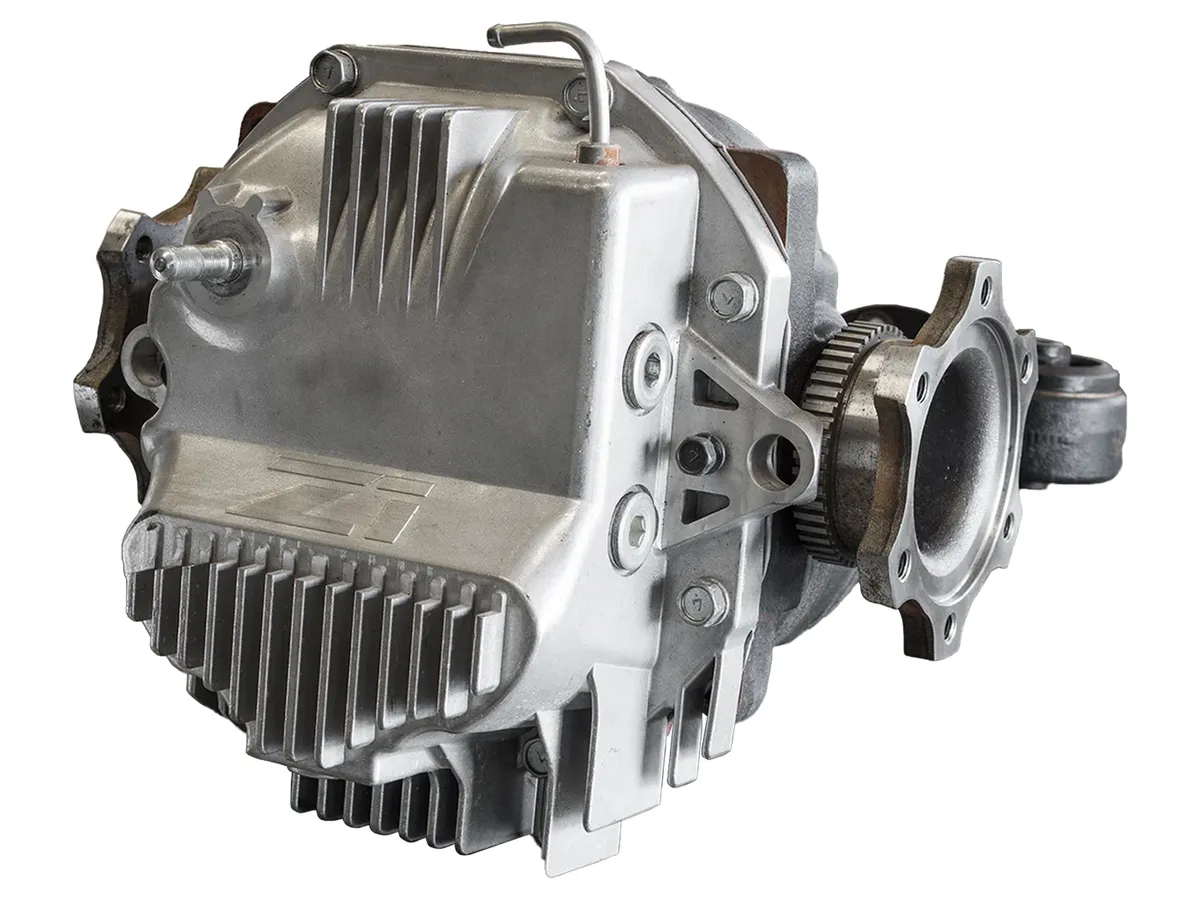

2Drivetrain
5 specifications
| Component | Value | Unit | Notes |
|---|---|---|---|
| Motor Mount Bolts | 43–58 | lb-ft | |
| Transmission Mount Bolts | 29–40 | lb-ft | |
| Propeller Shaft to Diff Flange | 29–36 | lb-ft | |
| Differential Mounting Bolts | 72–87 | lb-ft | |
| Rear Axle Nut | 152–203 | lb-ft |
3Brakes
3 specifications
| Component | Value | Unit | Notes |
|---|---|---|---|
| Front Brake Caliper Bolts | 101–116 | lb-ft | |
| Rear Brake Caliper Bolts | 43–58 | lb-ft | |
| Lug Nuts | 72–87 | lb-ft |
4Steering
3 specifications
| Component | Value | Unit | Notes |
|---|---|---|---|
| Steering Rack Mounting Bolts | 58–72 | lb-ft | |
| Tie Rod End to Knuckle | 22–29 | lb-ft | |
| Steering Wheel Nut | 22–29 | lb-ft |
