KA24DE

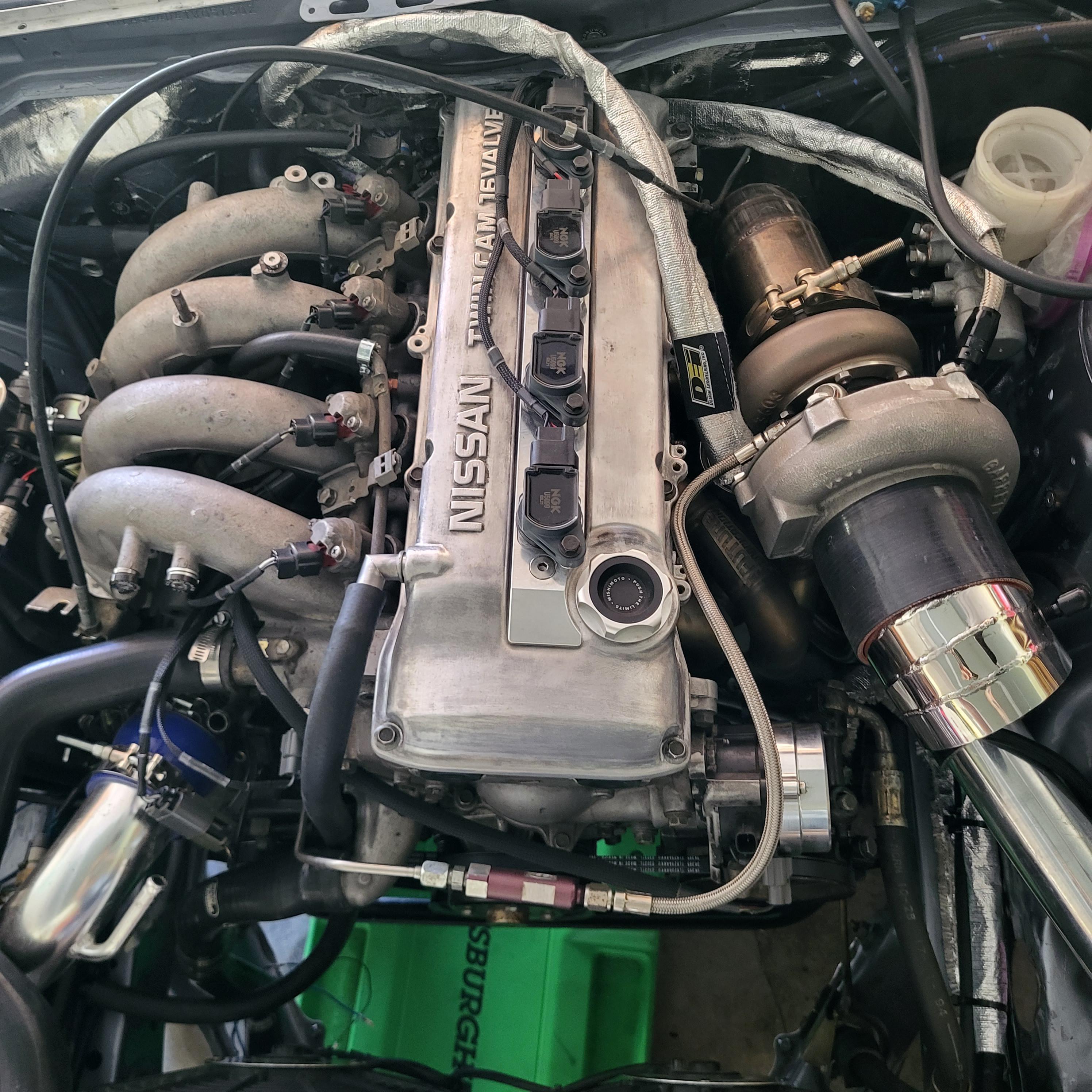

KA24DE 2.4L Naturally Aspirated Inline-4
2389ccInline-4, DOHC, Naturally Aspirated
The KA24DE is the factory 2.4-liter naturally aspirated inline-four engine in the US-market Nissan 240sx S13 and S14. While often swapped out for the SR20DET in drift builds, the KA24DE is a popular budget drift base due to its strong low-end torque, robust bottom end, and availability. Turbo KA builds ('KA-T') are a cost-effective alternative to the SR swap.
Nissan 240sx S13 (1991–1994)Nissan 240sx S14 (1995–1998)Nissan Hardbody Truck D21
Always verify torque specifications with your specific year/model OEM service manual before assembly. Values shown are reference specifications and may vary by model year, revision, or regional market.

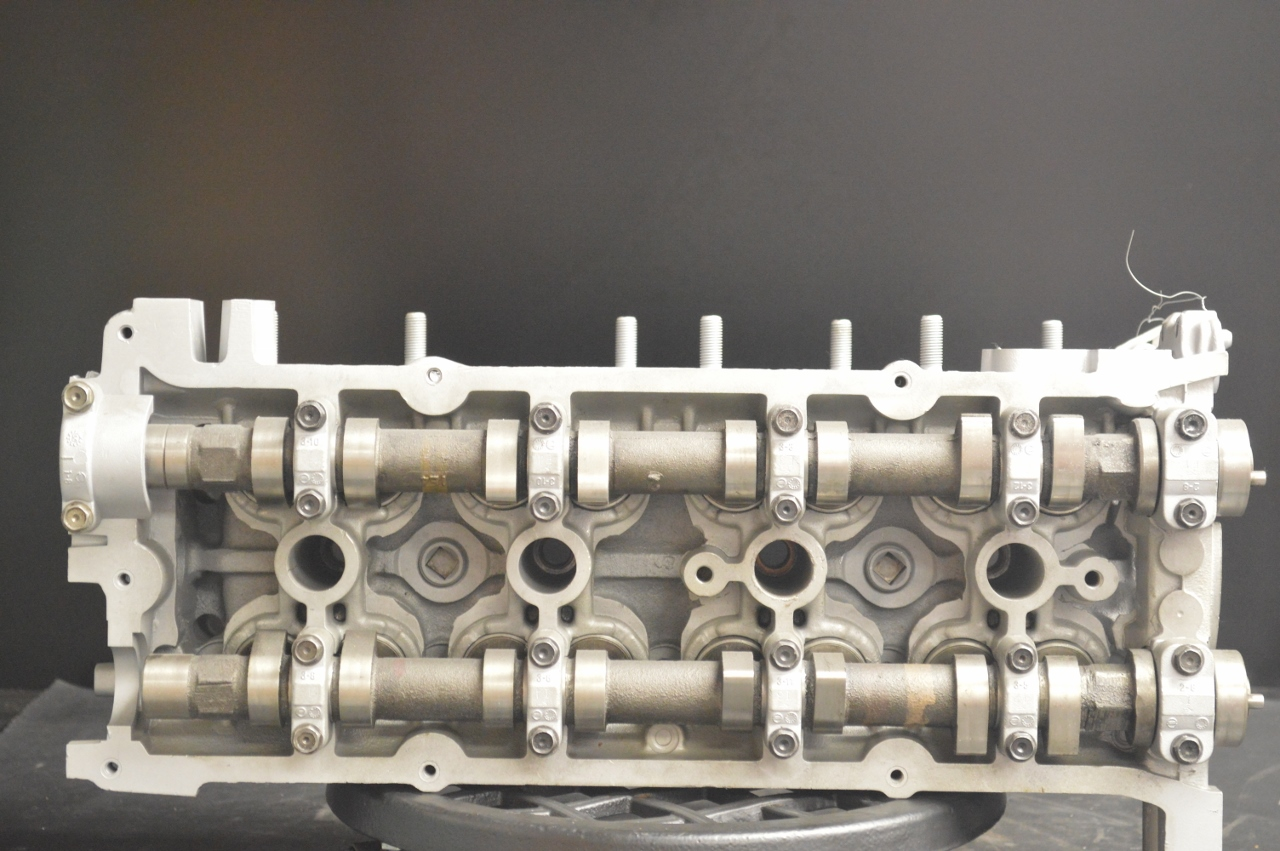

1Cylinder Head
10 specifications · 5 locked
| Component | Value | Unit | Notes |
|---|---|---|---|
| 1Cylinder Head Bolts — Step 1 | 22 | lb-ft | Torque in sequence, cold engine |
| 2Cylinder Head Bolts — Step 2 | 58 | lb-ft | Torque in sequence |
| 3Cylinder Head Bolts — Step 3 (Loosen) | Loosen | ° | Fully loosen all bolts |
| 4Cylinder Head Bolts — Step 4 | 22 | lb-ft | Re-torque in sequence |
| 5Cylinder Head Bolts — Step 5 | 58 | lb-ft | Torque in sequence |
| ████████████████ | ██ | ████ | ████████████ |
| ████████████████ | ██ | ████ | ████████████ |
| ████████████████ | ██ | ████ | ████████████ |

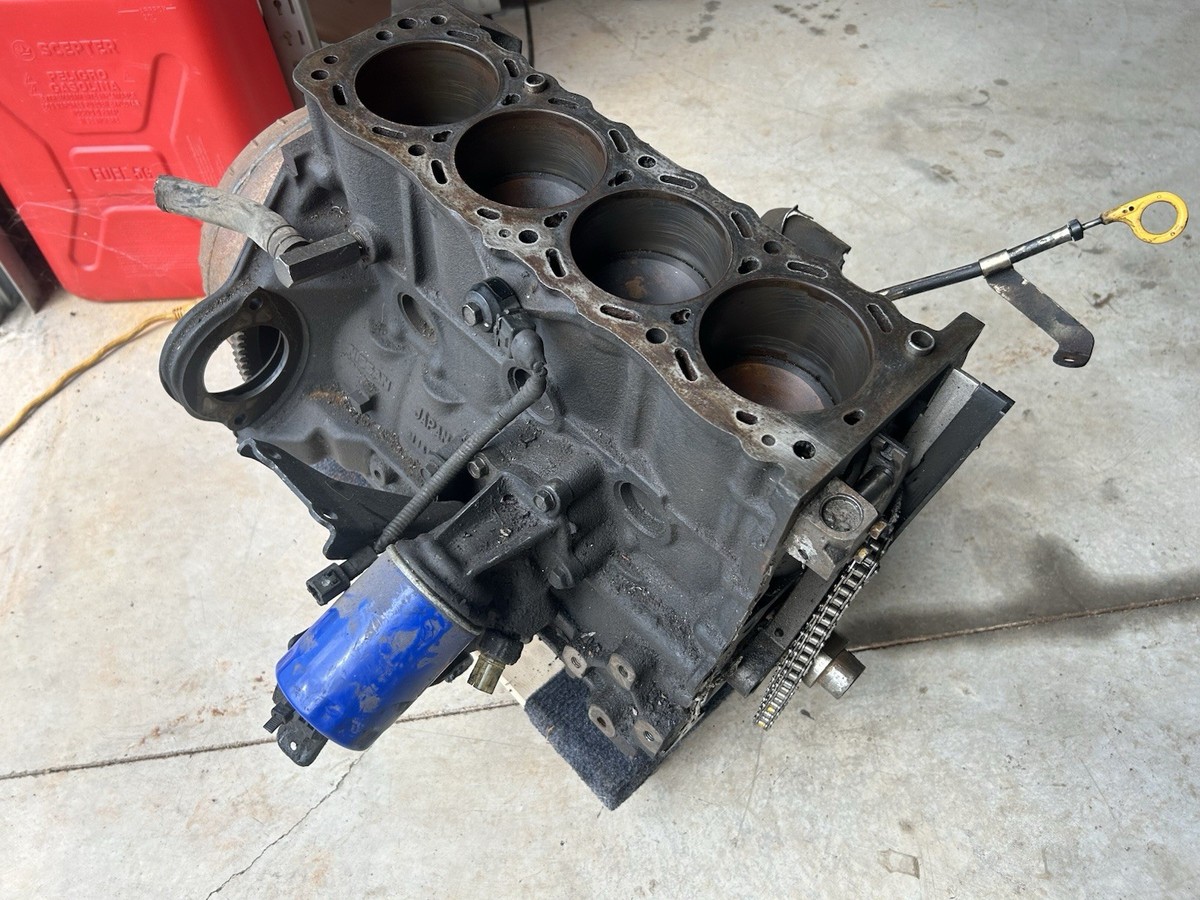

2Short Block
6 specifications · 1 locked
| Component | Value | Unit | Notes |
|---|---|---|---|
| 1Main Bearing Caps — Step 1 | 22 | lb-ft | Torque in sequence from center out |
| 2Main Bearing Caps — Step 2 | 34–38 | lb-ft | Final torque in sequence |
| 1Connecting Rod Caps — Step 1 | 10–12 | lb-ft | Initial torque |
| 2Connecting Rod Caps — Step 2 (Angle) | +60–65° | ° | Angle turn; approx 28–33 lb-ft total |
| Crankshaft Pulley Bolt | 87–116 | lb-ft | Ensure woodruff key is seated |
| ████████████████ | ██ | ████ | ████████████ |
3Engine Accessories
7 specifications · 2 locked
| Component | Value | Unit | Notes |
|---|---|---|---|
| Exhaust Manifold Nuts | 27–35 | lb-ft | Torque from center outward; check after heat cycle |
| Intake Manifold Nuts/Bolts | 12–15 | lb-ft | Torque from center outward |
| Oil Pan Bolts | 5–6 | lb-ft | Tighten in criss-cross pattern |
| Oil Drain Plug | 22–29 | lb-ft | |
| Water Pump Bolts | 12–15 | lb-ft | Even steps to ensure seal |
| ████████████████ | ██ | ████ | ████████████ |
| ████████████████ | ██ | ████ | ████████████ |
